The Skull Knight: Final Form

by erickdiaz84

59
42 Comments

Details

Date Published

July 11, 2015

Date Built

July 10, 2015

CPU Clock Rate

4.60GHz

CPU Temperature While Idle

39.0° C

CPU Temperature Under Load

86.0° C

GPU Core Clock Rate

1.42GHz

GPU Effective Memory Clock Rate

1.75GHz

Description

This build is the final evolution of a build I posted previously. The main upgrades were a second GTX 980 and a ROG Swift monitor, along with some cosmetic items like gpu backplates, individually sleeved power cables and an led lit SLI bridge.

The main purpose of this build is to get ALL DEM FRAMES SON. Running games at 2560x1440 with a 144hz refresh rate is basically paradise on Earth.

I've been piecing this thing together for about the past 4 months, initially I upgraded the processor, mobo and gpu to get all of the important bits out of the way, but these shiny new parts were living in the belly of my previous, aging build. Aesthetically, it was lacking to say the least. All along, however, I had a final vision in mind and I'm glad to say that I've gotten pretty close to what I had originally set out to build.

Most of the components were purchased at my local Fry's Electronics store here in Vegas. This meant I ended up paying a bit more than I would have had I used an online resource like... say "pcpartpicker.com" to find better deals. I did get a few deals along the way however by using ebay to snag up some gently used components for big discounts. The only pre-existing component from my old build is the OS.

I'll go into some of my thoughts on the individual components now, if you'd rather stop here than go into gory detail I'll thank you for checking out my build and wish you many happy returns!

CPU: Intel Core i5-4690K -This processor being the de facto go to CPU for a wide variety of builds I'm sure I don't have to say too much about it. I will say that my initial designs for this build were somewhat more modest, and so this processor fit my needs perfectly, however now that I'm at the end of the road looking back I feel I should have went with an i7 4790k, not because I feel that the i5 is lacking in any way, simply for the power factor and the fact that the build feels a bit incongruous with a mid level cpu. Still, a wonderful quad core with lots of overclocking potential.

CPU Cooler: Corsair H100i GTX -I'm sure there are coolers that benchmark better than this one out there, but it provides industry standard closed loop liquid cooling performance with aesthetics I find pleasing, and I've had good luck with Corsair components over the years so I don't feel bad about it. My CPU temps are basically what you'd expect, don't really break 40C and I live in the sun-baked desert of Las Vegas.

MOBO: Asus Maximus VII HERO -It has all the things I needed in a mobo (namely robust overclocking tools and... Bling) and a pretty decent onboard sound solution. Obviously not audiophile quality, but I'll probably end up getting a DAC and amp at some point for those purposes. The styling is likely a bit avant garde for some, but PC building and gaming are basically my paths towards childhood regression so I'm quite fond of it.

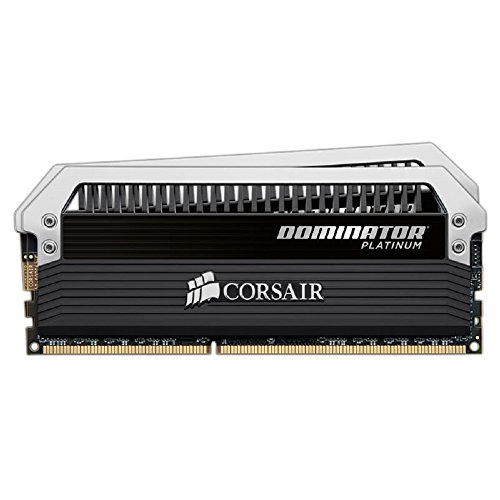

RAM: Dominator Platinum -Its too expensive for what you get. There I said it. It also looks amazing. Basically just bling, but highly functional bling I suppose.

SSD: Samsung 850 EVO 500gb -Haven't had any issues with this thing whatsoever. A wonderful performer with enough space to put the majority of my games and applications on it alongside my OS. No idea how the longevity claims will play out in the next few years, but so far I think it's been amazing, and the price is a steal.

HDD: Seagate Barracuda 1TB -It spins around and remembers things. Nothing to see here folks.

GPUs: EVGA GTX 980 4GB Superclocked ACX 2.0 -I started this build before either the 980ti or Fury x were being talked about. At that point, other than the titan x, the 980 was king of the hill. I don't really regret pulling the trigger when I did since technology is always marching forward and you'll eventually have to bite the bullet and purchase SOMETHING, knowing full well that a few months down the road that something will not be the best thing anymore. I haven't had any issues with them and they absolutely rip through high resolution gaming at amazing frame rates. I haven't tried any 4k gaming with them yet, but they keep my ROG Swift humming along swimmingly.

Case: Corsair 600t -This is probably the component I regret buying the most. I think its a fine case and I love the aesthetics, but I had originally planned on buying its younger and bigger brother, the 780t. Alas, avarice and haste got the better of me and I picked this up along with some other things at Frys, since they did not carry the 780t at the time. Honestly its a bit cramped for my build and has very limited radiator mounting options for the h100i GTX. The logical method of mounting the rad wound up placing the fans right next to the removable top mesh panel, and after a few days for some mysterious reason they started making a horrendous resonating sound, to the point where I basically have to remove the top mesh panel whenever I turn the system on now. I'm trying to think up a solution for it, but it may end up that I just rebuild the whole thing in a 780t at some point in the future.

EDIT: So I found a workable solution to the noise issue, in case anyone reading this experiences similar issues. I just flipped my fans around. Instead of forcing air from the top of the case through the radiator, I am now pulling air through the radiator to the top of the case. The droning sound vanished immediately and the temps are only a few degrees higher under load. Blessed quietude achieved!

PSU: Corsair AX 860 -I had originally planned to use the "i" version of this PSU, but figured I really didn't need all the fancy interface functions on that and went with the cheaper, dumber version, It works perfectly fine.

Monitor: Asus ROG SWIFT -Oh man, this thing. I swear to God. If you can get your hands on one, do it. It is amazing. Excellent color accuracy as well, a lot of people complain because it is a TN panel but I've had no complaints. G-sync functionality is Last Boss level graphical performance, absolutely stunning. (although I will say that I've never used a free-sync monitor, but those seem to be cheaper and if they offer a similar level of performance then they're the better deal, the only complaint I think I could muster for this monitor is the price tag, which might end up amounting to a green team fan boy tax. ah well.)

Keyboard: Corsair K70 RGB Fully mechanical (mine are reds) with pretty lights you can program yourself. Absolutely love it. Might do an O ring mod on it soon, but its fresh right out the box.

Mouse: Corsair Vengeance M95 They haven't made an RGB version of their mmo mouse so I picked this one up to match my build. I play a lot of WoW and other mmos, so I like multibutton mice. I used to have a Razer Naga and, functionally, the two are very similar however I like the aesthetics and feel of the corsair one more. Its got more heft to it which I like, but I am a large dude so if you're not quite as big and burly as I am your mileage may vary.

Headset: Audio-Technica ATH-ADG1 -I'm something of an Audio-Technica fan boy ever since I randomly purchased a pair of cans at a department store in Tokyo when I was stationed at Yokosuka naval base during my tour with the Navy. When I found out that they had a gaming-centric head set with a built in mic I basically had no choice but to throw my money at them. Excellent headset with the best built in mic I've ever used. Extremely comfortable as well, although again ymmv since I have a pretty generously proportioned dome piece. They are open backed which widens the soundscape, ideal for gaming purposes and first person shooters especially. Again, the only complaint I could muster is that you could likely achieve similar quality for less by purchasing the cans this headset was modeled on and adding a mod mic. I personally don't like the clunkiness of that setup and appreciate the built in mic.

Overclocking Notes: I bumped up my gpu voltage by 6mv and added 150mhz to the shader clocks. I got my 4690k to about 4.6ghz as well. I could probably go further with these clocks but I really just wanted to reach the 99th percentile on 3dmark haha.

Comments Sorted by:

Eddie0711 1 Build 3 points 34 months ago

980s in sli plus rog swift...you really can't go wrong with that combo! Awesome build!

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Thanks! It really is a screamer, I had done a fair amount of research on dual 980 performance at high resolutions but seeing it firsthand I was still pretty amazed.

Eddie0711 1 Build 1 point 34 months ago

I was going to get dual 980s as well but then the 980ti came out and got two of them for the 6gb frame buffer and the rog swift 4k when it comes out! Anyway enjoy the build its awesome!

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Yeah if I didn't already have the 980 from when I originally started this build I probably would have went with the ti myself, or even dual fury x's. But this is my rig for at least the next 3 years so we'll see what's happening when upgrade time comes around again!

Eddie0711 1 Build 1 point 34 months ago

Oh ok fair enough I mean you can't really go wrong with dual 980s! It's an awesome build thanks for sharing!

jeremythelee 2 Builds 3 points 34 months ago

Awesome build. Great cable management. TERRIBLE name.

erickdiaz84 submitter 3 Builds 2 points 34 months ago

Its a reference to my favorite comic book character OF ALL TIME, The Knight of The Skeleton from Kentarou Miura's magnum opus; Berserk.

hovablack 1 Build 2 points 34 months ago

I love Berserk, i just wish he would continue.., Oh, great build.

erickdiaz84 submitter 3 Builds 1 point 34 months ago

He's starting again at the end of this month, reliable rumors say its going to be monthly updates after that.

hovablack 1 Build 1 point 34 months ago

I hope so, I've been having withdrawal syptoms for what seems like an eternity, i keep re watching the anime and re-reading the manga.

erickdiaz84 submitter 3 Builds 1 point 34 months ago

I must be on my tenth read through the manga myself haha.

iCreatZ 2 points 34 months ago

Nice

iRadar 2 points 34 months ago

That is a NASTY build. Nice!

ewhite0603 1 Build 2 points 34 months ago

Dig the Berserk reference!

Sn0w-Q 2 Builds 2 points 34 months ago

I swear u are like me BIGGEST REGRET 600T!!!!!!!!!!!!!!!!!!!!!! I case swapped to the sexy cousin Corsair air 540 CONGRATS ON UR BUILD MAY UR FRAMERATES BE HIGH AND TEMPS BE LOW!!!

shmattymcfatty 2 Builds 2 points 34 months ago

Awesome build! the white builds are too clean and the new H100igtx looks so much better!

Mobo64 1 point 34 months ago

"this is not even my final form!" oh it is.. nice build!

erickdiaz84 submitter 3 Builds 2 points 34 months ago

Would you believe that I have the steam achievement "its over 9000!" for 3D Mark benchmark?

Because I totally do.

dabasepc 1 Build 1 point 34 months ago

nice build. sli bridge doesnt fit well. would paint the grey or something

erickdiaz84 submitter 3 Builds 1 point 34 months ago

It looks a lot better in person, you mainly see the glowing LED from inside the case as it breathes along with the ones on the gpus. Unfortunately my camera isn't too great and really can't focus without it's flash, which wipes out the LED glow in the pics.

Painting the grey plastic part white would be pretty sweet though... hmm. You may have just inspired me!

XxD34THxX 2 points 34 months ago

Use plasticity since it is not conductive e and you can peel it off if you don't like it/ want something new

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Thanks for the tip!

Now that I'm remembering though, I had originally wanted to use an Asus ROG sli bridge since it would accent the red of the mobo, however I wasn't able to find a sane price on one. Could only find them on amazon for over $100, and I'm like no way is that an appropriate price for an sli bridge. Might wait until the prices on those come back down to earth and replace the evga one.

XxD34THxX 1 point 34 months ago

Yeah.. paying 99 bucks for a piece is aesthetic plastic and maybe metal

erickdiaz84 submitter 3 Builds 1 point 34 months ago

It looks like they're actually hitting the marketplace on the 15th of this month and will be priced more appropriately, I've seen preorders for the dual bridge for 35 bucks. Its more expensive than the evga one, but its brushed aluminum instead of plastic so that sort of substantiates the cost. I might pick one up in a few weeks and see how it works out.

malymilo 4 Builds 1 point 34 months ago

I like seeing someone else who uses the M95.

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Took a little getting used to after the naga, but now I can tank raid bosses with one hand and practice sign language with the other.

Growliff1234 2 points 33 months ago

MULTI TASKING

Dukanater 1 point 34 months ago

would the Intel Core i7-4790K be better for this build to make it last longer with out need to upgrade? or is the Intel Core i5-4690K really that good everyone praises it im asking because im about to do a similar SLI build but ill probably go with the GeForce GTX 970 x2 instead and i dont want to regret regret my choice.

your build is beautiful if i knew you in person id make you build mine its seriously awesome. also i am beating myself up about what case to get if you have any opinions on a case similar to this one or even better you wish you had gotten maybe ill build your dream build and send you some pictures =]

erickdiaz84 submitter 3 Builds 2 points 34 months ago

For the applications that I run (namely video games) the performance increase for the i7 could be termed marginal. I would probably see a few more frames per second with a nicely overclocked 4790k, but nothing amazing. That being said I think I would have used the i7 if I had to do it over again. It is far superior for well threaded applications like photo shop or video editing software.

Corsair has made something of an update to the case I used in my build, its called the 780t and I'd probably use that instead. Its got more room and similar styling, although its more plastic than my case, which is mostly steel.

dashhex 1 point 34 months ago

I know there are a bunch of benchmarks on the internet but it would be nice if you tell me how many frames you got in certain games and at what resolution! :D

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Well I've been playing Dragon Age: Inquisition at around 100 fps with all settings maxed at 2560x1440 and 2xaa if that helps.

dashhex 1 point 34 months ago

wow very nice man!

KeithJacobD 1 Build 1 point 34 months ago

Hey how'd you get that white cable look? Might look nice on my build https://pcpartpicker.com/parts/partlist/

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Corsair sells custom sleeved cables for many of its psus. They come in different colors too. Can be sort of hard to get a hold of though. They run out of stock pretty often.

Busy_Schedule 1 point 34 months ago

Please put this monster into a custom loop.

erickdiaz84 submitter 3 Builds 1 point 34 months ago

Oh man, I would love to. The case I've got wouldn't work though, and my wife probably wouldn't be too happy with the added cost ha ha. Maybe in a couple of years though.

Busy_Schedule 1 point 34 months ago

Yeah, true. I doubt the price of custom loops will go down but cases always get cheaper. Although, your case is more than enough you could always go down the route of a Caselabs or the Define S/Air 540 if you want an easy case to do a loop in.

auldae 1 Build 1 point 34 months ago

In case you didn't know: You can toggle DSR (Dynamic Super Resolution) factors in the NVIDIA Control Panel and then select the corresponding resolution in game to see how high your FPS gets in 4K res. without needing a 4K monitor.

erickdiaz84 submitter 3 Builds 2 points 34 months ago

Yeah, I was using that feature before I got my ROG swift but I haven't ventured into 4k territory yet. I'll probably give it a shot just to see how she holds up.

[comment deleted]
erickdiaz84 submitter 3 Builds 1 point 34 months ago

The desk is amazing. From blu dot. Modern minimalism. Amazing color and very well built. All the desk I need and none I don't.

[comment deleted by staff]
[comment deleted by staff]
erickdiaz84 submitter 3 Builds 1 point 34 months ago

Firestrike weighs cpu physics pretty heavily and your build has a better processor than mine. If you compare the pure graphics scores you'll see that dual 980s perform better, my cpu just isn't hyperthreaded.

[comment deleted by staff]
[comment deleted by staff]
erickdiaz84 submitter 3 Builds 1 point 34 months ago

Thanks man! I'm pretty excited that I was able to get the featured build, its part of the reason why I didn't stop with my first iteration of this build. It just wasn't cool enough yet.
